Name: STORM CONDUIT PIPES

Display Field: FEATURE_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

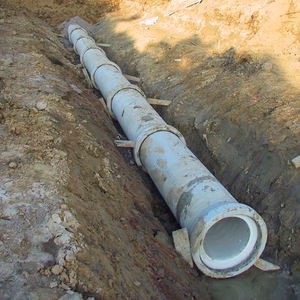

Description: These stormwater conduit pipes are used to convey surface rainwater and groundwater to the nearest ditch, canal or river. The conduits and inlets represent the storm drain infrastructure for the City of Savannah. This layer was created in ESRI ArcGIS software to display the location of underground stormwater drainage pipes. This layer displays the conduit pipes as a line feature and contains pipe attribute data such as pipe diameter, material, length and invert elevations. The pipe invert elevations are entered into GIS taken from design Asbuilt information.

Service Item Id: 9a1821fde7f94f04abf5f733bfdf9957

Copyright Text: OWNER: CITY OF SAVANNAH - STORMWATER DEPARTMENT. STORMWATER DEPARTMENT DIRECTOR - ZACK HOFFMAN PH. (912) 650-7855 ext. 1938 zhoffman@savannahga.gov ARCGIS DATA CUSTODIAN: BARRIE WILKINS PH. (912) 650-7855 ext. 2859 bwilkins@savannahga.gov ARCGIS EDITOR FOR THIS LAYER: BARRIE WILKINS PH. (912) 650-7855 ext. 2859 bwilkins@savannahga.gov ARCGIS EDITOR FOR THIS LAYER: MO SPIESSL PH. (912) 650-7855 ext. 2546 maureen.spiessl@savannahga.gov

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 904685.7506474741
YMin: 703813.7501391768
XMax: 1006344.0020424463
YMax: 795886.5256037861
Spatial Reference: 102666  (2239)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [142, 92, 62, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SUBTYPE_ID ( type: esriFieldTypeString, alias: SUBTYPEID, length: 20 )
• FEATURE_ID ( type: esriFieldTypeInteger, alias: FEATURE_ID )
• FEATUREID ( type: esriFieldTypeString, alias: FEATUREID, length: 25 )
• MATERIAL ( type: esriFieldTypeString, alias: MATERIAL, length: 50 , Coded Values: [TRUSS: TRUSS] , [AC: AC] , [BR: BR] , ...11 more... )
• DIAMETER ( type: esriFieldTypeString, alias: DIAMETER, length: 10 )
• SHAPE_OF_PIPE ( type: esriFieldTypeString, alias: SHAPE_OF_PIPE, length: 16 , Coded Values: [ARCHED: ARCHED] , [BOX: BOX] , [CIRCULAR: CIRCULAR] , ...4 more... )
• PIPE_WIDTH ( type: esriFieldTypeDouble, alias: PIPE_WIDTH )
• PIPE_HEIGHT ( type: esriFieldTypeDouble, alias: PIPE_HEIGHT )
• PIPE_LENGTH ( type: esriFieldTypeDouble, alias: PIPE_LENGTH )
• UNIT_OF_MEASURE ( type: esriFieldTypeString, alias: UNIT_OF_MEASURE, length: 16 , Coded Values: [CM: Centimeters.] , [DM: Decameters] , [HM: Hectometer.] , ...10 more... )
• INVERT_IN ( type: esriFieldTypeDouble, alias: INVERT_IN )
• INVERT_OUT ( type: esriFieldTypeDouble, alias: INVERT_OUT )
• ELEV_UOM ( type: esriFieldTypeString, alias: ELEV_UOM, length: 16 , Coded Values: [CM: Centimeters.] , [DM: Decameters] , [HM: Hectometer.] , ...10 more... )
• SLOPE_BOTTOM ( type: esriFieldTypeDouble, alias: SLOPE_BOTTOM )
• SLOPE_UOM ( type: esriFieldTypeString, alias: SLOPE_UOM, length: 12 , Coded Values: [ARCSEC: Arc seconds.] , [DDMMSS: Degrees:minutes:seconds.] , [DEG: Degrees.] , ...18 more... )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, length: 16 , Coded Values: [A: ACTIVE] , [P: PENDING] , [F: FUTURE] , ...1 more... )
• BASIN_ID ( type: esriFieldTypeString, alias: BASIN_ID, length: 20 , Coded Values: [BILBO: BILBO BASIN] , [BLACK CREEK: BLACK CREEK] , [CASEY NORTH: CASEY NORTH] , ...23 more... )
• FEATURE_NAME ( type: esriFieldTypeString, alias: FEATURE_NAME, length: 30 )
• NUMBER_OF_BARRELS ( type: esriFieldTypeSmallInteger, alias: NUMBER_OF_BARRELS )
• STORM_FLOW ( type: esriFieldTypeString, alias: STORM_FLOW, length: 10 , Coded Values: [SOUTH: SOUTH] , [NORTH: NORTH] , [EAST: EAST] , ...5 more... )
• COMMENT ( type: esriFieldTypeString, alias: COMMENT, length: 100 )
• ASBUILT_DATE ( type: esriFieldTypeDate, alias: ASBUILT_DATE, length: 8 )
• EDIT_DATE ( type: esriFieldTypeDate, alias: EDIT_DATE, length: 8 )
• EDITOR ( type: esriFieldTypeString, alias: EDITOR, length: 10 )
• ENGINEER_FIRM ( type: esriFieldTypeString, alias: ENGINEER_FIRM, length: 25 )
• HYPERLINK_VIDEO ( type: esriFieldTypeString, alias: HYPERLINK_VIDEO, length: 255 )
• HYPERLINK_ASBUILT ( type: esriFieldTypeString, alias: HYPERLINK_ASBUILT, length: 255 )
• NHBD_NUMBER ( type: esriFieldTypeSmallInteger, alias: NHBD_NUMBER )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• CONDITIONRATING ( type: esriFieldTypeDouble, alias: CONDITIONRATING )
• Condition_Date ( type: esriFieldTypeDate, alias: Condition_Date, length: 8 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• USTREAM_NODE ( type: esriFieldTypeString, alias: USTREAM_NODE, length: 20 )
• DSTREAM_NODE ( type: esriFieldTypeString, alias: DSTREAM_NODE, length: 20 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
